db Audiotechnik The 2 Way 18 Inch Drivers Passive Speaker System J Sub Loudspeaker

Brand Name : QYC

Model Number : J sub

Certification : CE , RoHS

Place of Origin : China

MOQ : 2 Pieces

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500 Pieces/Month

Delivery Time : Within 15 Days

Packaging Details : Carton Packing or Flight Case

Model : J sub

Frequency Response : 40Hz-350Hz(±3dB)

Sensitivity (1W / m) : LF:101dB/98dB

Nominal Impedance : LF:4Ω/8Ω

Rated Power (front/rear) : LF:1600W/800W

Peak Power(front/rear) : LF:6400W/3200W

LF Component : 18" x3

Max SPL/Peak : LF:141dB/147dB

Connectors : (NEUTRIK NL4)*2 LF:+1-1 LF:+2-2

Enclosure Construction : 18mm plywood

Dimension : W1100*H540*D1063mm

Weight : 116.5KG

Contact Now

db Audiotechnik The 2 Way 18 Inch Drivers Passive Speaker System J Sub Loudspeaker

Product description

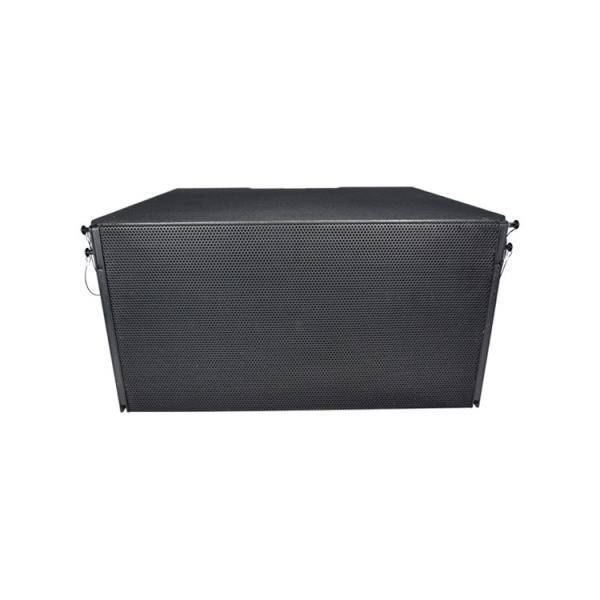

The J-SUB is the cardioid subwoofer for the J-Series. It can be used to supplement J8 and J12 cabinets in various combinations, either flown or ground stacked. When the J Flying Frame is used J-SUB
cabinets can be flown in columns of up to 16 cabinets or inserted on top of a J8/J12 line array column.

The J-SUB cabinet is an actively driven 2-way bass-reflex design housing three long excursion 18" drivers, two drivers face to the front while one driver radiates to the rear of the cabinet. Front and rear drivers are driven by separate amplifier channels and operate in independent bass reflex chambers. Through its cardioid dispersion pattern this setup avoids unwanted energy behind the system and greatly reduces the reverberant field at low frequencies providing highest accuracy in low frequency reproduction.

Its frequency response extends from 40Hz to 350Hz (±3dB).

The cabinet is constructed from marine plywood and has an impact and weather protected PCP (Polyurea Cabinet Protection) finish. The front and rear of the loudspeaker cabinet are protected by a rigid metal grill. Each side panel incorporates four handles and mounted on the rear panel are four heavy duty wheels.

Model	J Sub
Frequency Response	40Hz-350Hz(±3dB)
Sensitivity (1W / m)	LF:101dB/98dB
Nominal Impedance	LF:4Ω/8Ω
Rated Power (RMS)	LF:1600W/800W
Peak Power	LF:4800W/2400W
LF Component	18" x3
Max SPL/Peak	LF:141dB/147dB
Connectors	*(NEUTRIK NL4)2 LF:+1-1 LF:+2-2**
Enclosure Construction	18mm plywood
Dimension	*W1100H540D1063mm*
Weight	116.5KG
