Single 12inch Line Array Speaker System High Efficiency Driver Configuration

Brand Name : QYC

Model Number : S1230

Certification : CE , RoHS

Place of Origin : China

MOQ : 2 Pieces

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500 Pieces/Month

Delivery Time : Within 15 Days

Packaging Details : Carton Packing or Flight Case

Components : LF: 1 x 12", HF: 1 X 75mm

Frequency Response : 45 Hz - 20 KHz (± 3 dB)

RMS : LF: 1400W, HF: 400W (Peak)

Sensitivity (1w/1m) : 104 dB (1 kHz - 8 kHz)

Impedance : 8 Ohms or 16 Ohms

Max SPL : 129 dB

Dispersion : 80° x 120° (Hor x Ver)

Dimensions : 26 1/2”x13 1/2”x15 3/4 in (H x W x D)

Net Weight : 66.1 lbs

Contact Now

Passive 2 - Way Line Array Speaker System , Single 12" 104 dB Loudspeaker Module

The compact, 2-way S1230 is a scalable loudspeaker module, beyond cardioid focus and fidelity, S12 technology optimizes mobile system inventories through unrivalled mid-sized system output, while Designers and Consultants, benefit from S12’s weather-proof options and bid-friendly installation hardware.

FIXED OR MOBILE SYSTEMS ?

A comprehensive accessories package precisely rigs S1210/S1230 arrays, both horizontally and vertically, with unrivalled flexibility, and without sonic compromise to venue architecture or acoustics.

KEY FEATURES

Coherent Wave Propagation from QYC’s Advanced Hyperbolic Wavesource

Advanced Constant Velocity Profile Output from 28.5° Wavefront Curvature

Integral Rigging System with Angles from 22.5° to 30°

Model	S1230
Components	LF: 1 x 12", HF: 1 X 75mm
Frequency Response	45 Hz - 20 kHz
RMS (Continuous)	LF: 350W, HF: 100W
RMS (Peak)	LF: 1400W, HF: 400W
Sensitivity (1w/1m)	104 dB (1 kHz - 8 kHz)
Nominal Impedance	8 Ohms or 16 Ohms
Maximum SPL	129 dB
Dispersion	80° x 120° (H x V)
Dimensions (H x W x D)	675344400 mm / 26 1/2”x13 1/2”x15 3/4 in
Net Weight	30kg / 66.1 lbs
Panel Material	Plywood case in black painting

Single 12inch Line Array Speaker System High Efficiency Driver Configuration

Product Tags:

line array sound system

pro audio line array speakers

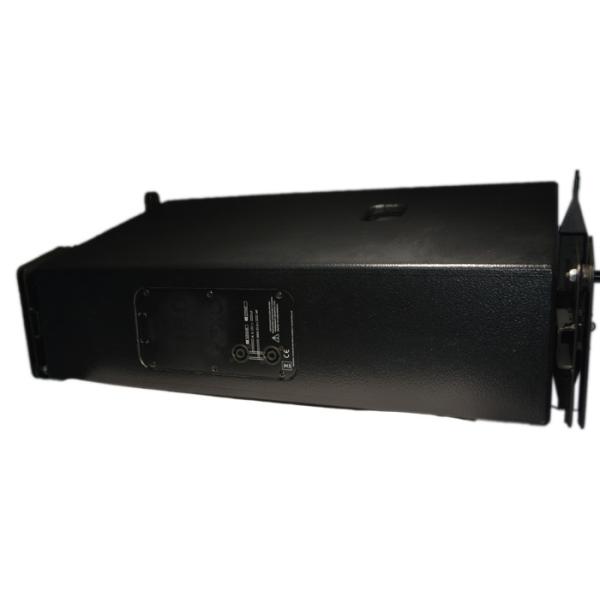

Single 12inch Line Array Speaker System High Efficiency Driver Configuration Images
