Class H Stereo Power Amplifier , 1800 Watts 2 Channel Live Power Amplifier

Brand Name : QYC

Model Number : HQ-2.6

Certification : CE , RoHS

Place of Origin : China

MOQ : 2 Pieces

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500 Pieces/Month

Delivery Time : Within 15 Days

Packaging Details : Carton Packing or Flight Case

Stereo 8Ω : 600 Watts per channel

Bridge 8Ω : 1800 Watts

Frequency Response : 20Hz-20,000Hz

THD+N : <0.02%(rated power, 4Ω/1000Hz)

S/N Ratio : >100dB

Input sensitivity : 0.77V/1V/1.4V

Input Impedance : 15KΩ Balanced/30KΩ Unbalanced

Damping Factor : >500

Contact Now

High Power Professional Analog Analog Amplifier Bridged 1800 Watts at 8 ohms , 2 Channel amp

HQ-2.6

No-compromise audio performance with improved efficiency

It is useful to expand Class AB amplifier technology “Class H switching”, especially high output power amplifiers. This idea seems to be very simple at first sight. The AB amplifier is provided with an additional power supply unit operating with half the voltage. As long as the power amplifier does not require a high output level – which is the case for most applications, especially fixed installations – it is supplied by the lower operating voltage, thereby significantly reducing power loss.

Signal peaks are detected immediately and the Class H power supply dynamically takes over the provision of high voltage by means of a superfast field-effect transistor

HQ amp is the the production of high-performance power amplifiers. The innovative 3-stage Grounded Bridge Class H technology with “floating" switching power supply unit offers very high and stable output with extreme high efficiency on an extremely high performance level at minimum weight. HQ amps are ideal for driving professional touring, high-end Concert-Sound and Pro-Sound applications.

Model	HQ2.6, 2 channel amp
Output Power
Stereo 8Ω	600 Watts per channel
Stereo 4Ω	900 Watts per channel
Bridge 8Ω	1800 Watts
Frequency Response	20Hz-20KHz
THD+N	<0.02%(rated power,4Ω/1KHz)
S/N Ratio	>100dB
Input sensitivity	0.77V/1V/1.4V
Input Impedance	15KΩ Balanced/30KΩ Unbalanced
Damping Factor	>500
Cooling system	intelligent variable speed fan controlled by temperature, airflow from front to back
Indicator	Indicator, startup: green LED, signal: green LED(each channel), clipping: yellow LED(each channel), protect: red LED
Protection	short, open, overheat, ultrasonic, RF and unmatched load, mute switch
AC main	AC220V/50-60Hz
Main requirement	15A
Dimension	2U
Weigh	20.5kg

Class H Stereo Power Amplifier , 1800 Watts 2 Channel Live Power Amplifier

Product Tags:

analog audio distribution amplifier

class h power amplifier

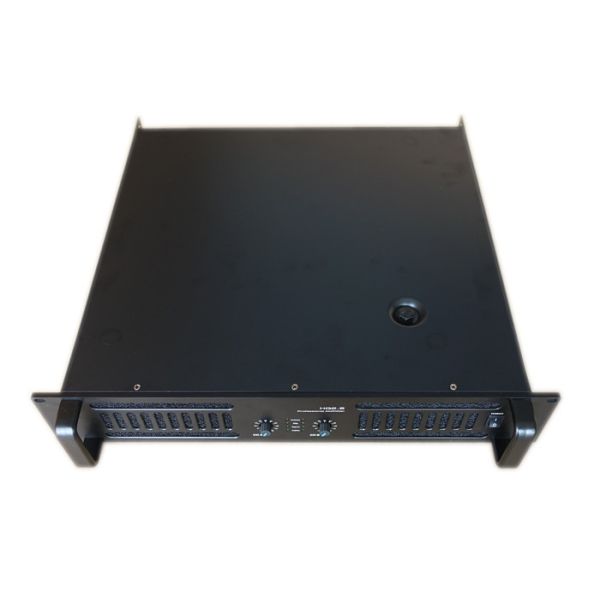

Class H Stereo Power Amplifier , 1800 Watts 2 Channel Live Power Amplifier Images
