High Sound Pressure Compact Line Array Speakers 1600W Pro Audio Subwoofer

Brand Name : QYC

Model Number : KS28

Certification : CE , RoHS

Place of Origin : China

MOQ : 2 Pieces

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500 Pieces/Month

Delivery Time : Within 15 Days

Packaging Details : Carton Packing or Flight Case

Description : flyable subwoofer 2×18"

Low frequency limit (-10dB) : 25 Hz

Maximum SPL : 143 dB

Drives : 2 x 18"

Nominal impedance : 4 Ω

Connectors : 4-point speakON

Weight (net) : 79 kg

Rigging components : high grade steel

Contact Now

High Power Line Array Speaker Dual 18 Inch 1600W Pro Audio Subwoofer

Description:

The system shall consist of a subwoofer driven and protected by a dedicated amplified controller.

The subwoofer shall feature two 18" weather-resistant low frequency transducers including cone drivers and vented neodymium magnets, mounted in a bass-reflex tuned enclosure.

The LF limit shall be 25 Hz (-10 dB).

The subwoofer shall be usable in standard or cardioid configuration.

The maximum SPL shall be 143 dB (peak level at 1 m under half space conditions using pink noise with crest factor 4). The long term RMS handling capacity shall be 1600 W at the nominal 4 Ω impedance.

The subwoofer cabinet construction shall consist of first grade Baltic beech and birch plywood. The dimensions shall be 565 mm (22.2 in) height, 1351 mm (53.2 in) width, and 719 mm (28.3 in) depth. The subwoofer weight shall be 79 kg (174 lb). The front of the subwoofer shall be protected by a steel grill with anti-corrosion coating covered with acoustically neutral fabric.

KS28 Specifications
Description	flyable subwoofer 2×18"
Low frequency limit (-10dB)	25 Hz
Maximum SPL	143 dB
Directivity	standard or cardioid
Drivers	2 x 18"
Acoustical load	bass-reflex, L-Vents
Nominal impedance	4 Ω
Connectors	4-point speakON

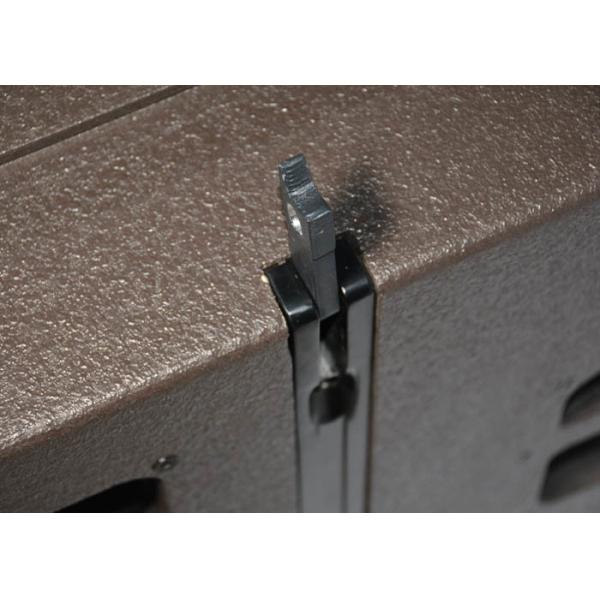

Rigging and handling	flush-fitting 2-point rigging system
	6 ergonomic handles
	2 ground runners
	8 side runners
Weight (net)	79 kg / 174 lb
Cabinet	first grade Baltic beech and birch plywood
Front	steel grill with anti-corrosion coating
Front	acoustically neutral 3D fabric
Rigging components	high grade steel
Finish	dark grey brown Pantone 426C
