3 Way Compact Line Array Speakers , Large Compact Audio Speakers Frequency Response 48 Hz - 17 KHz

Brand Name : QYC

Model Number : J8

Certification : CE , RoHS

Place of Origin : China

MOQ : 2 Pieces

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500 Pieces/Month

Delivery Time : Within 15 Days

Packaging Details : Carton Packing or Flight Case

Configuration : Large Format 3-Way Line Array Loudspeaker

Frequency response (–5 dB CUT mode) : 85 Hz - 17 KHz

Max. sound pressure (1m, free field) with 30D : 145 dB

Nominal impedance : 6 Ω (LF) / 12 Ω (MHF)

Nominal dispersion angle (horizontal) : 80°

Splay angle settings : 0 - 7° (1° increment)

Components 1 : 2 x 12" LF / 1 x 10" MF / 2 x 65 mm HF

Dimensions (H x W x D) 1 : 360 x 1100 x 570 mm

Dimensions (H x W x D) 2 : 14.2 x 43.3 x 22.4"

Weight 2 : 132 lb

Contact Now

3 - way Line Array Loudspeaker , Frequency response 48 Hz - 17 KHz

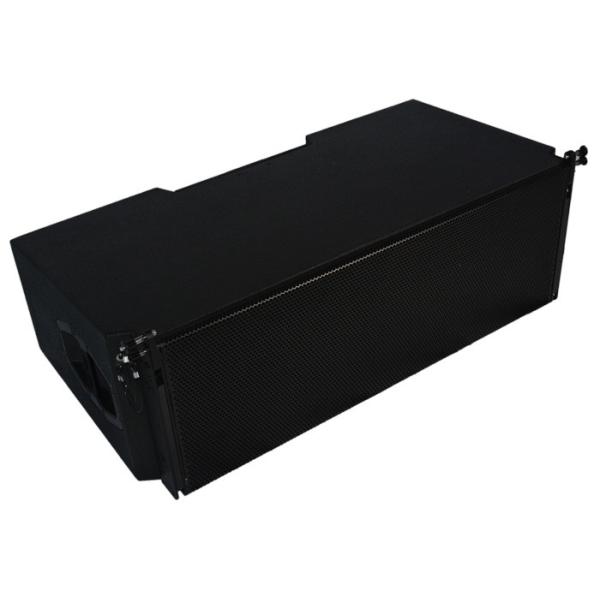

1. The J8 is a 3-way design housing 2 x 12" LF drivers, one hornloaded 10" MF driver and two 1.4" exit HF compression drivers with 3" voicecoils mounted to a dedicated waveshaping device.

2. The mechanical and acoustical design enables flown vertical columns of up to 24 loudspeakers to be suspended using vertical splay angles between them of 0° to 7° with a 1° resolution.

3. The front of the loudspeaker cabinet is protected by a rigid metal grill, the side and rear panels incorporate four handles.

4. The J8 cabinet is constructed from marine plywood and has an impact and weather protected PCP (Polyurea Cabinet Protection) finish.

Frequency response (–5 dB standard)	48 Hz - 17 KHz
Frequency response (–5 dB CUT mode)	85 Hz - 17 KHz
Max. sound pressure (1m, free field)
with 30D	145 dB
with D80	145 dB
Cabinets per D80/30D	4
Loudspeaker data
Configuration	Large format 3-way line array loudspeaker
Nominal impedance	6 Ω (LF) / 12 Ω (MHF)
Power handling capacity LF (RMS/peak 10 ms)	500/2000 W
Power handling capacity MHF (RMS/peak 10 ms)	200/800 W
Nominal dispersion angle (horizontal)	80°
Splay angle settings	0 - 7° (1° increment)
Components	2 x 12" driver / 1 x 10" driver
	2 x 1.4" exit compression driver
	passive crossover network
Connections	2 x NLT4 F/M
Connections	optional 2 x EP5 or 2 x NL8
Dimensions, weight
Dimensions (H x W x D)	360 x 1100 x 570 mm
Dimensions (H x W x D)	14.2 x 43.3 x 22.4"
Weight	60 kg
Weight	132 lb
