142 DB 3 Way Line Array Loudspeaker , Super Low Frquency Live Sound Speakers

Brand Name : QYC

Model Number : V8

Certification : CE , RoHS

Place of Origin : China

MOQ : 2 Pieces

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500 Pieces/Month

Delivery Time : Within 15 Days

Packaging Details : Carton Packing or Flight Case

Model : V8

Frequency response (–5 dB standard) : 67 Hz - 18 kHz

Frequency response (–5 dB CUT mode) : 100 Hz - 18 kHz

with D20/30D : 139 dB

with D80 : 142 dB

Cabinets per amplifier channel : 2

Contact Now

Dual 10" Three Way Loudspeaker V8 Line Array Pa System, Live Sound Speakers

V8 Line Array Pa System

The 3-way dipolar, passive loudspeaker shall consist of two 10" low-frequency driver with a neodymium magnet assembly, one 8" midrange driver and two 1.4" exit neodymium compression drivers with 2.5" diaphragms mounted to a dedicated wave shaping device and a passive crossover network. The loudspeaker shall only be operated by a dedicated, compatible controller amplifier.

The V8 is a 3-way passive design housing 2*10'' LF drivers, one horn-loaded 8" MF driver and two 1.4" exit HF compression drivers with 2.5" voice coils mounted to a dedicated waveshaping device. The symmetrical dipolar arrangement of the neodymium LF drivers around the centrally mounted coaxial MF and HF components allows a smooth overlap of the adjacent frequency bands in the crossover design. This results in an exceptional 80 horizontal constant directivity dispersion control nominally being maintained down to 250 Hz.the mechanical and acoustical design enables flown vertical arrays of up to twenty-four loudspeakers

System data
Frequency response (–5 dB standard)	67 Hz - 18 kHz
Frequency response (–5 dB CUT mode)	100 Hz - 18 kHz
Max. sound pressure (1m, free field)
with D20/30D	139 dB
with D80	142 dB
Cabinets per amplifier channel	2
Loudspeaker data
Configuration	High performance 3-way passive line array loudspeaker
Nominal impedance	8 Ω
Power handling capacity (RMS/peak 10 ms)	500/2000 W
Nominal dispersion angle (horizontal)	80°

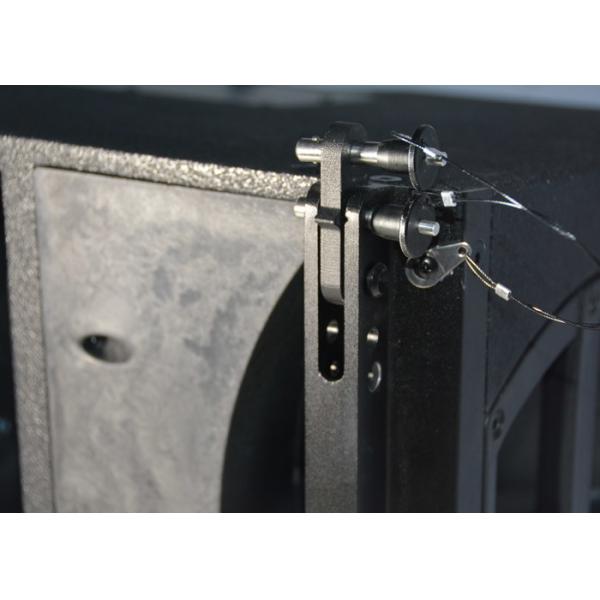

Splay angle settings	0° - 14° (1° increment)
Components	2 x 10" driver / 1 x 8" driver
	2 x 1.4" exit compression driver
	passive crossover network
Connections	2 x NLT4 F/M
Connections	optional 2 x NL4 or 2 x EP5
Dimensions, weight
Dimensions (H x W x D)	310 x 700 x 460 mm
Dimensions (H x W x D)	12.2 x 27.5 x 18"
Weight	34 kg
Weight	75 lb
